Rescue Equipment

Air Lifting Bags

MatJack Low Pressure Lifting Bags

MatJack low pressure airbags come in 6 sizes and lifting capabilities, from 1.5 ton C1818 to the 9.8 ton L119 system.

Low pressure lifting bags can be used to stabilize overturned vehicles, upright trucks, lift aircraft and many other lifting operations. This airbag design spreads the “load” over more surface area, lowering the psi exerted on the object being lifted – reducing potential for damage. They are most useful for high lifting and relatively low tonnage lifting operations.

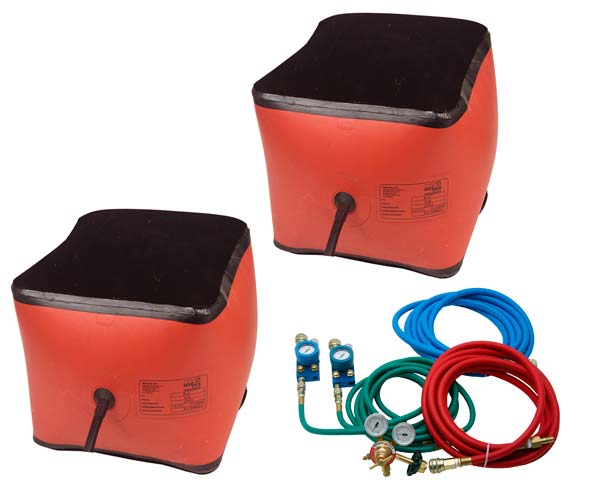

MatJack low pressure air bags provide gentle lifting power for a variety of lifting needs. Side by side two Matjack low pressure bags make recovery efforts fast, quiet and effective.

Model Dimensions Lift Capacity Weight
L102 24” x 24” x 18” high 2.5 tons @ 10 psi 14 lbs.
L105 36” x 36” x 18” high 5.8 tons @ 10 psi 33 lbs.
L107 36” x 36” x 30” high 5.8 tons @ 10 psi 37 lbs.
L112 48” x 48” x 48” high 8.0 tons @ 9 psi 87 lbs.
L119 56” x 56” x 72” high 9.8 tons @ 7 psi 180 lbs.
MatJack Quick Lift Kit

MatJack “Quick Lift” Lifting Bag

The Quick Lift has been developed to solve those lifting problems where a hydraulic jack cannot be used. Made from Hypalon™/Neoprene™ coated polyester fabric and designed to work at a maximum pressure of 8 psi. The Quick Lift will have a vertical lift capacity of 1.5 tons and a lift and roll capacity of 3 tons.

The Quick Lift can be inflated with either the recommended dual action hand pump or regulated air line with a gauge into the system. When packed away, the Quick Lift is a compact 18” x 18” x 24” high and including the pump weighs only 13 lbs.

Its lightweight construction means that it can easily be carried and it will cope with most surfaces and vehicle types. The low pressure of operation means damage free lifting and the Quick Lift utilizes an environmentally friendly inflation system.

The Quick Lift, pump, carry bag, inflation hose, and optimal push button control can be purchased separately.

Model Dimensions Lift Capacity Total Kit Weight
C1818 18” x 18” x 24” high 1.5 tons @ 8 psi 13 lbs.
