 Tri-Max
3 Mini-CAF
Weight: 36 lbs. (ready for use)
Max. Discharge Range: 30-35 ft.
Capacity: 3 Gallons Liquid
Max. Output: 60 gallons foam
Max. Discharge Rate: 90 GPM
Expansion Ratio: 5:1 to 20:1
Right: TM-3 Mini-CAF takes on a 25’ x 25’ pan fire
of diesel and gasoline. |
 |
|
Tri-Max
30
Discharge Range: 75-80 ft.
Capacity: 30 Gallons Liquid
Max. Output: 600 gallons foam
Max. Discharge Rate: 300 GPM
Hose: 1" Hose Line
Expansion Ratio: 5:1 to 20:1
Weight: Approximately 570 lbs.
Custom Mounting:
Tri-Max TM-30 components can be mounted to fit in a compartment
on your apparatus. This can enable CAF cabability on an apparatus
not originally planned to have fire suppression equipment. |
 |
|
Tri-Max
Super-60
Discharge Range: 1" Line: 75-80 ft.
1 1/2" Line: 95-100 ft.
Capacity: 60 Gallons Liquid
Max. Output: 1200 gallons foam
Max. Discharge Rate: 1" Line: 300 GPM
1 1/2" Line: 500 GPM
Expansion Ratio: 5:1 to 20:1
Dimensions: 47 1/2" Wide x 70 " Long x 32 ¾" Tall
Weight: 630 lbs. (1,130 lbs. full) |
 |
|
Tri-Max
Super-120
Discharge Range: 1" Line: 75-80 ft.
1 1/2" Line: 95-100 ft.
Capacity: 120 Gallons Liquid
Max. Output: 2400 gallons foam
Max. Discharge Rate: 1" Line: 300 GPM
1 1/2" Line: 500 GPM
Expansion Ratio: 5:1 to 20:1
Dimensions: 47" Wide x 97" Long x 40 1/2" Tall
Weight: 1,525 lbs (2,527 lbs. full) |

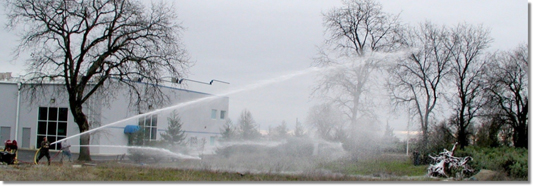

Tri-Max Super 60 simultaneously discharging both 1” and 1 ½” lines.
The Super 60 and Super 120 both have the ability to fire two lines
at once. |
|
|
|
